- Required Dependencies
- EntityScaleManager - https://umod.org/plugins/entity-scale-manager
Required Dependency: Entity Scale Manager
THE PLUGIN WILL FUNCTION WITHOUT IT, YOU JUST WONT GET THE SCALE FUNCTIONALITY

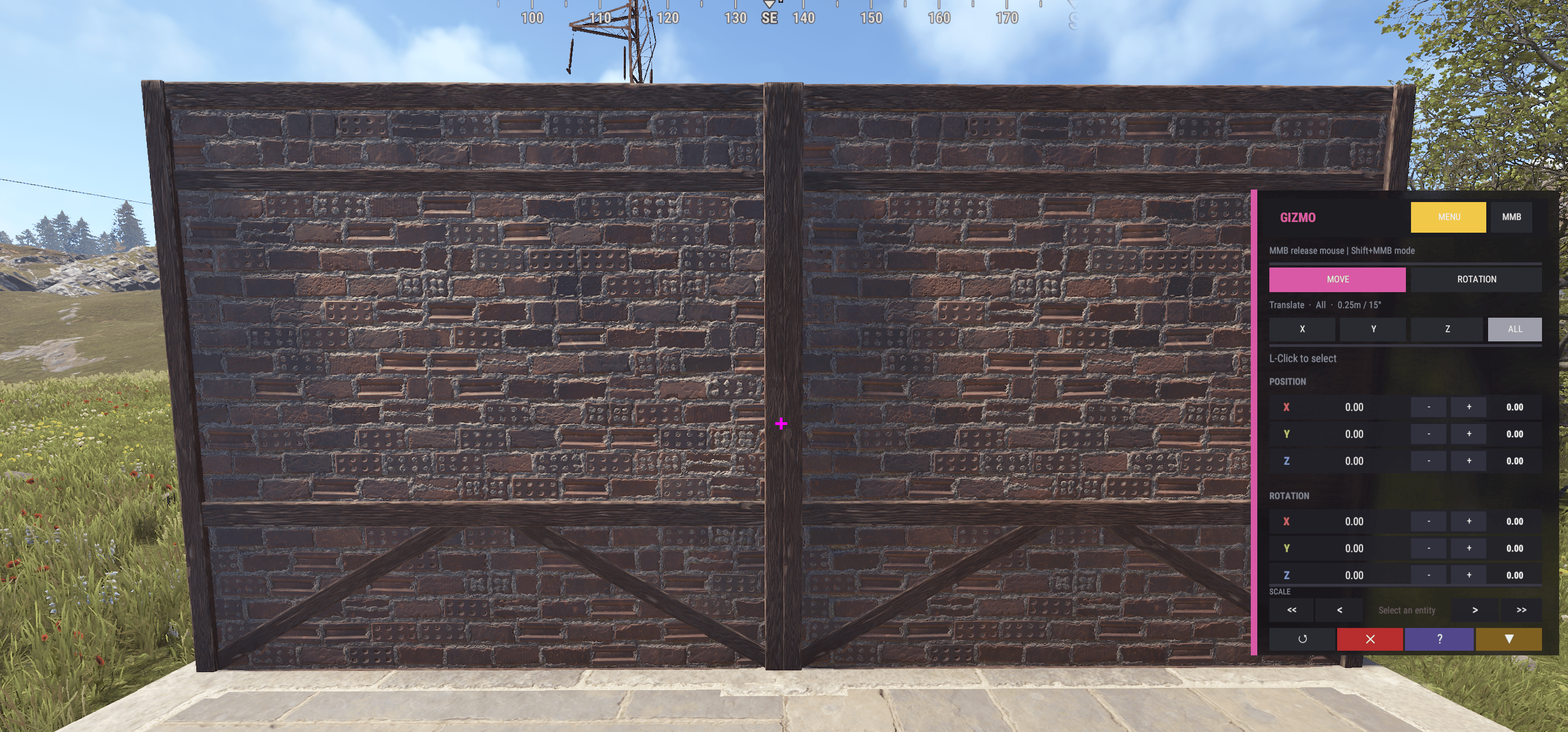

Entity Scale Manger Download HereGizmo is a standalone 3D transform tool for Rust servers, giving admins and trusted players precise control over entity positioning, rotation, and scale. Designed as a sleek in-game editor panel, it works on any entity - deployables, building blocks, props - without requiring a separate hammer.
Features3D Transform Gizmo | Select any entity and freely move or rotate it in real time
Live Coordinate Display | Position and rotation values update live as you drag
Axis Locking | Constrain movement or rotation to X, Y, Z, or free All axes
Surface-Snap Translate | Shift+Left drag snaps entity flush to terrain or surfaces
Roll Rotation | Shift+Right drag rotates with continuous roll; hold Shift for 4x speed
Entity Duplication | Shift+R+Left click to clone an entity and immediately drag the copy
Scale Control | Resize entities with << < [value] > >> buttons (requires EntityScaleManager)
3-Step Undo | Each grab saves position, rotation, and scale; undo up to 3 moves at once
Nudge Buttons | Fine|tune position and rotation with + / | step buttons
Direct Input Fields | Type an exact coordinate or angle value and press Enter
Modern UI Panel | Compact dark|themed panel with accent color configurable in config
MMB Cursor Toggle | Middle mouse switches between menu cursor and look/drag mode
Delete Entity | Remove selected entity with a single button press
Owner-Aware | Regular players can only act on entities they own; admins bypass this
Optional EntityScaleManager Integration | Scale features gracefully disable if plugin is absent
gizmo.use | Allows use of the Gizmo tool on owned entities
gizmo.admin | Full access — can act on any entity regardless of ownership
/gizmo | Gives you the Gizmo Tool item - equip it to open the panel

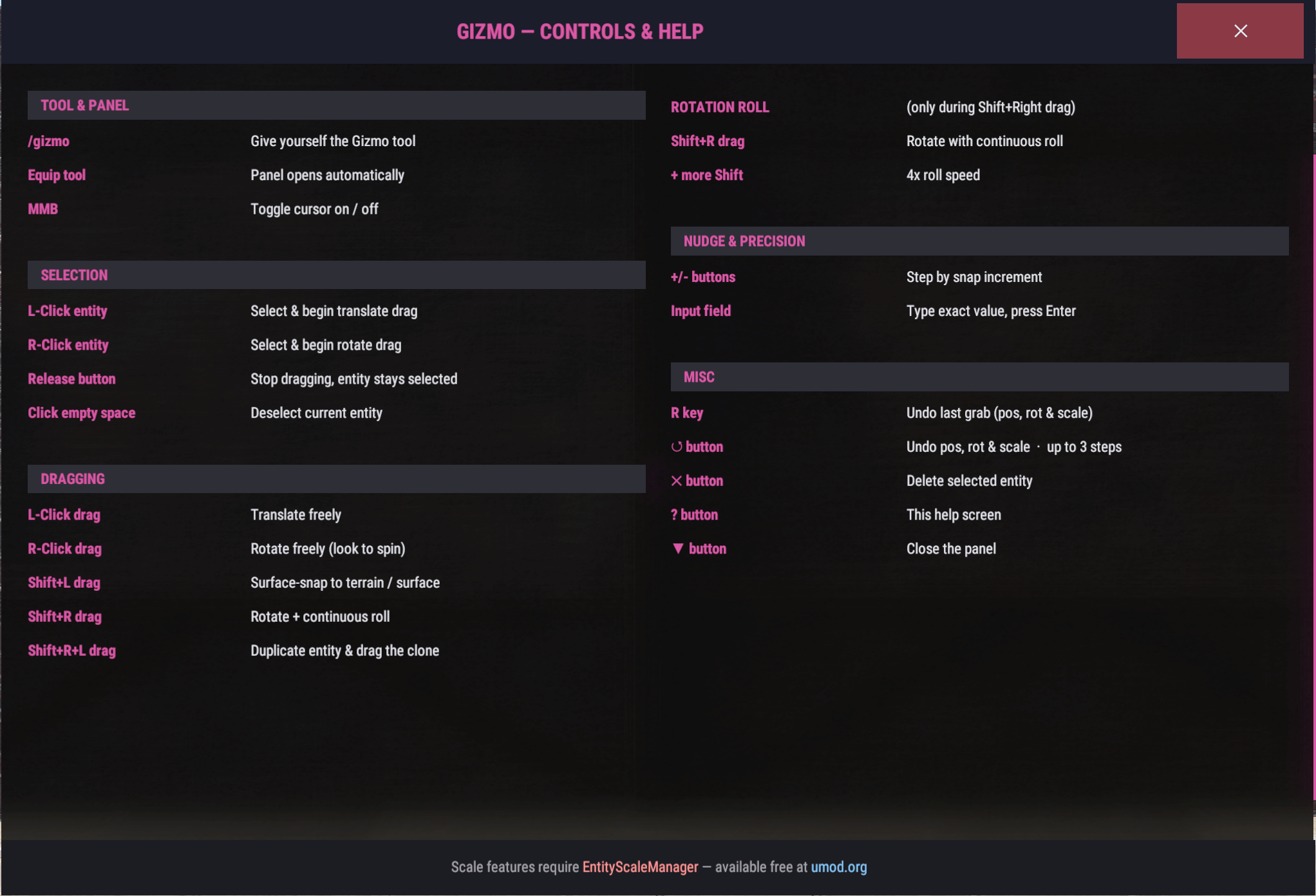

Keyboard Shortcuts (While Holding Gizmo Tool)MMB (Middle Mouse Button) | Toggle between menu cursor and look/drag mode
L-Click entity | Select entity and begin translate drag
R-Click entity | Select entity and begin rotate drag
Shift + L-click drag | Surface-snap translate - snaps to terrain or nearest surface
Shift + R-click drag | Rotate with continuous roll (hold Shift = 4x roll speed)
Shift + R(reload) + L-click | Duplicate entity and drag the clone
R(reload) key | Undo last grab - restores position, rotation, and scale (up to 3 steps)
Caveats and DisclaimersScale requires EntityScaleManager — The gizmo.admin and gizmo.use scale buttons are disabled if EntityScaleManager is not loaded. It is available free at umod.org.
Admin permission is powerful - gizmo.admin bypasses ownership checks entirely. Only grant to trusted staff.
Entity deletion is irreversible - Deleted entities cannot be recovered. No confirmation dialog is shown.
Undo only tracks grabs - The undo history is saved when you click to grab an entity. Changes made via nudge buttons or input fields after releasing are not separately tracked.
Server-side only - Transform changes are applied server-side. Clients will see the entity snap to the new position on next network update.
Configuration
JSON:
{
"ToolItemShortname": "coal",
"ToolSkinID": 3253162295,
"ToolDisplayName": "Gizmo Tool",
"RaycastDistance": 50.0,
"AutoOpenPanelWithTool": true,
"ShowMessages": true,
"DefaultSnapPosition": 0.25,
"DefaultSnapRotation": 15.0,
"NudgeDistance": 0.25,
"NudgeRotation": 5.0,
"MiddleMouseTogglesCursor": true,
"ShiftMiddleMouseTogglesMode": true
}
JSON:
{
"GivenTool": "Given {0}. Equip it — panel stays open, MMB toggles menu/look.",
"Selected": "Selected {0}",
"Duplicated": "Duplicated {0} — dragging clone.",
"CouldNotDuplicate": "Could not duplicate that entity.",
"Deleted": "Deleted {0}.",
"NoEntitySelected": "No entity selected.",
"NotOwned": "You don't own that entity.",
"NothingToUndo": "Nothing to undo.",
"Undone": "Undone.",
"UndoneRemaining": "Undone — {0} undo{1} remaining.",
"CursorOn": "Menu cursor ON — MMB to look/drag",
"CursorOff": "Look/drag mode — MMB for menu",
"PanelHidden": "Gizmo panel hidden — MMB to show.",
"NoPermission": "You don't have permission.",
"ScaleRequiresESM": "Scale requires the EntityScaleManager plugin to be loaded.",
"ScaleSelectFirst": "Select an entity first to use scale."
}
